Product Name: 1N USA Taper Pipe Thread Sealing Transition Joint
Prouduct Model:1N
Product Category:EATON STANDARD
Product Description::

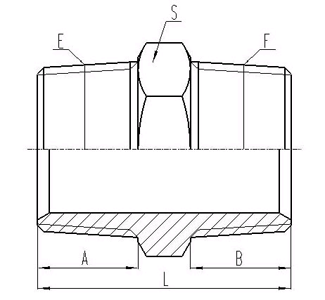

THREAD

DIMENSIONS

PART NO.

E

F

A

B

L

S

1N-02

Z1/8"X27

Z1/8"X27

10.5

10.5

27

12

1N-04

Z1/4"X18

Z1/4"X18

15

15

35

17

1N-06

Z3/8"X18

Z3/8"X18

16

16

38

19

1N-08

Z1/2"X14

Z1/2"X14

19.5

19.5

47

22

1N-12

Z3/4"X14

Z3/4"X14

19.5

19.5

49

27

1N-16

Z1"X11.5

Z1"X11.5

25.5

25.5

61

36

1N-20

Z1.1/4"X11.5

Z1.1/4"X11.5

26.5

26.5

65

46

1N-20-24

Z1.1/4"X11.5

Z1.1/2"X11.5

26.5

27.5

69

50

1N-24

Z1.1/2"X11.5

Z1.1/2"X11.5

27.5

27.5

69

50

1N-24-32

Z1.1/2"X11.5

Z2"X11.5

27.5

27.5

72

65

1N-32

Z2"X11.5

Z2"X11.5

27.5

27.5

71

65
