Product Name: KJNJ USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:KJNJ
Product Category:EATON STANDARD
Product Description::

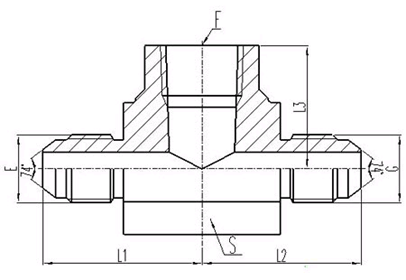

THREAD

DIMENSIONS

PART NO.

E

F

G

L1

L2

L3

S

KJNJ-04

7/16"X20

Z1/4"X18

7/16"X20

29.5

29.5

22.4

19

KJNJ-04-02-04

7/16"X20

Z1/8"X27

7/16"X20

26.5

26.5

16.8

16

KJNJ-05-02-05

1/2"X20

Z1/8"X27

1/2"X20

27.5

27.5

16.8

16

KJNJ-05-04-05

1/2"X20

Z1/4"X18

1/2"X20

29.5

29.5

22.4

19

KJNJ-06

9/16"X18

Z3/8"X18

9/16"X18

33.5

33.5

25.9

24

KJNJ-06-04-06

9/16"X18

Z1/4"X18

9/16"X18

30

30

22.4

19

KJNJ-08

3/4"X16

Z1/2"X14

3/4"X16

39.5

39.5

31.2

30

KJNJ-08-06-08

3/4"X16

Z3/8"X18

3/4"X16

36

36

25.9

24

KJNJ-10-08-10

7/8"X14

Z1/2"X14

7/8"X14

42.5

42.5

31.2

30

KJNJ-12

1.1/16"X12

Z3/4"X14

1.1/16"X12

48

48

34.5

33

KJNJ-16

1.5/16"X12

Z1"X11.5

1.5/16"X12

54

54

41.1

41

KJNJ-20

1.5/8"X12

Z1.1/4"X11.5

1.5/8"X12

59.5

59.5

43.2

48

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
