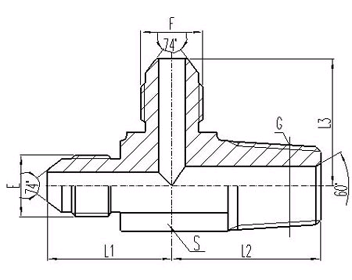

Product Name: AJJT-SP USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:AJJT-SP
Product Category:EATON STANDARD
Product Description::



THREAD

DIMENSIONS

PART NO.

E

F

G

L1

L2

L3

S

AJJT-04-04-02SP

7/16"X20

7/16"X20

R1/8"X28

24.5

21

24.5

11

AJJT-04SP

7/16"X20

7/16"X20

R1/4'X19

26.6

25.5

26.6

14

AJJT-06-06-04SP

9/16"X18

9/16"X18

R1/4'X19

26.9

25.5

26.9

14

AJJT-06SP

9/16"X18

9/16"X18

R3/8"X19

28.5

28.5

28.5

16

AJJT-08-08-06SP

3/4"X16

3/4"X16

R3/8"X19

32

30.5

32

19

AJJT-08SP

3/4"X16

3/4"X16

R1/2"X14

34.8

36

34.8

22

AJJT-10-10-08SP

7/8"X14

7/8"X14

R1/2"X14

37.8

36

37.8

22

AJJT-12SP

1.1/16"X12

1.1/16"X12

R3/4"X14

44.2

43.5

44.2

27

AJJT-16SP

1.5/16"X12

1.5/16"X12

R1"X11

49

50

49

33

AJJT-20SP

1.5/8"X12

1.5/8"X12

R1.1/4"X11

55.5

56.5

55.5

41

AJJT-24SP

1.7/8"X12

1.7/8"X12

R1.1/2"X11

62.5

62.5

62.5

48

Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
