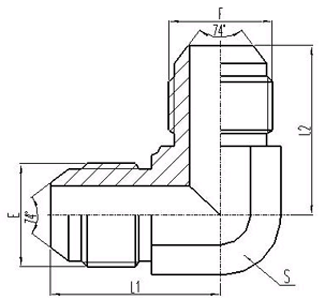

Product Name: 1J9 USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:1J9
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

1J9-04

7/16"X20

7/16"X20

24.5

24.5

11

1J9-05

1/2"X20

1/2"X20

26.5

26.5

14

1J9-06

9/16"X18

9/16"X18

26.9

26.9

14

1J9-08

3/4"X16

3/4"X16

32

32

19

1J9-10

7/8"X14

7/8"X14

37.8

37.8

22

1J9-12

1.1/16"X12

1.1/16"X12

44.2

44.2

27

1J9-16

1.5/16"X12

1.5/16"X12

49

49

33

1J9-20

1.5/8"X12

1.5/8"X12

55.5

55.5

41

1J9-24

1.7/8"X12

1.7/8"X12

62.5

62.5

48

?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
