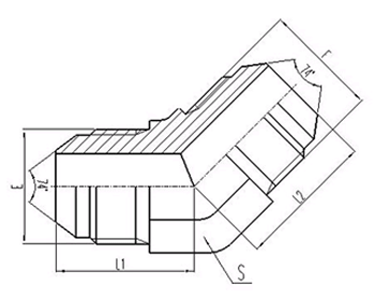

Product Name: 1J4 USA JIC Thread 74¡ãConical Surface Sealing Transition Joint
Prouduct Model:1J4
Product Category:EATON STANDARD
Product Description::

THREAD

DIMENSIONS

PART NO.

E

F

L1

L2

S

1J4-04

7/16"X20

7/16"X20

21.5

21.5

11

1J4-05

1/2"X20

1/2"X20

22.3

22.3

14

1J4-06

9/16"X18

9/16"X18

22.8

22.8

14

1J4-08

3/4"X16

3/4"X16

26.8

26.8

19

1J4-10

7/8"X14

7/8"X14

31

31

22

1J4-12

1.1/16"X12

1.1/16"X12

35.5

35.5

27

1J4-16

1.5/16"X12

1.5/16"X12

38.5

38.5

33

?:?D,?HNB200?HNB500?,?HNB200?HNB300?
Note Nut and sleeve should be ordered separately, the nut HNB200 and HNB500 is sulitable for metric tube, the nut HNB200 and sleeve HNB300 is suitable for inch tube.
