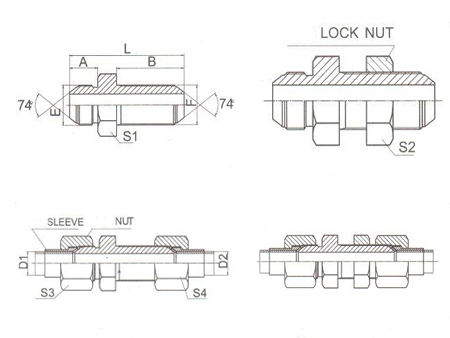

PART NO. | THREAD | TUBE O.D. | DIMENSIONS | |||||||
| E | F |
| D1, D2, | A | B | L | S1 | S2 | S3,S4 | |
| 6Q-10 | M101 | M101 | 5 | 12.5 | 34 | 52.5 | 14 | 14 | 14 | |
| 6Q-12 | M121.5 | M121.5 | 6 | 15.7 | 38 | 59.7 | 17 | 17 | 14 | |
| 6Q-14 | M141.5 | M141.5 | 8 | 17 | 40 | 64 | 17 | 19 | 17 | |
| 6Q-16 | M161.5 | M161.5 | 10 | 18 | 41 | 65 | 19 | 22 | 19 | |
| 6Q-18 | M181.5 | M181.5 | 12 | 18 | 43 | 69 | 24 | 24 | 22 | |
| 6Q-22 | M221.5 | M221.5 | 14 | 19.5 | 44 | 73.5 | 27 | 27 | 27 | |
| 6Q-24 | M241.5 | M241.5 | 16 | 20 | 45 | 75 | 27 | 30 | 30 | |
| 6Q-27 | M271.5 | M271.5 | 18 | 20 | 48 | 78 | 30 | 32 | 32 | |
| 6Q-30 | M301.5 | M301.5 | 20 | 23 | 53 | 87 | 34 | 36 | 36 | |
| 6Q-33 | M332 | M332 | 22 | 26 | 55 | 92 | 36 | 41 | 38 | |
| 6Q-36 | M362 | M362 | 25 | 25 | 56 | 94 | 41 | 41 | 41 | |
| 6Q-39 | M392 | M392 | 28 | 26 | 58 | 97 | 41 | 46 | 48 | |
| 6Q-42 | M422 | M422 | 32 | 28.5 | 59 | 102.5 | 50 | 50 | 50 | |
| 6Q-45 | M452 | M452 | 34 | 28.5 | 60 | 103.5 | 50 | 50 | 55 | |
Note: In case if you are interested to order the adapter with lock nut,please insert suffix"LN"after our part NO.,for example6Q-18LN;order the adapter with sleeve and nut,please insert suffix "RN"after our part NO.,for example 60Q -18RN order the adapter with lock nut and sleeve and nut,insert suffix "LN/RN" after part NO., for example 6Q- 18LN/RN.The sleeve NO.is NB500-Q and the nut NO.is NB200-Q and the lock nut NO.is 8C.
