THREAD

TUBE O.D

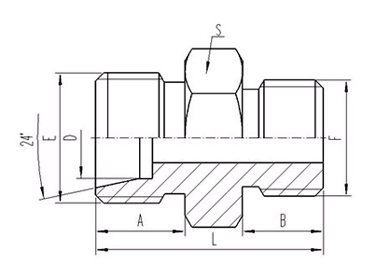

DIMENSIONS

PART NO.

E

F

D

A

B

L

S

1DO-16-04

M16X1.5

7/16"X20

8

13.5

9.14

29

17

1DO-18-06

M18X1.5

9/16"X18

10

13.5

9.93

30

19

1DO-20-06

M20X1.5

9/16"X18

12

13.5

9.93

32

22

1DO-20-08

M20X1.5

3/4"X16

12

13.5

11.1

33

22

1DO-24-08

M24X1.5

3/4"X16

16

14

11.1

35

27

1DO-24-10

M24X1.5

7/8"X14

16

14

12.7

37

27

1DO-30-08

M30X2

3/4"X16

20

19

11.1

41

32

1DO-30-10

M30X2

7/8"X14

20

19

12.7

43

32

1DO-30-12

M30X2

1.1/16"X12

20

19

15.1

45

32

1DO-36-12

M36X2

1.1/16"X12

25

20

15.1

46

38

1DO-36-16

M36X2

1.5/16"X12

25

20

15.1

46

38

1DO-42-16

M42X2

1.5/16"X12

30

20

15.1

48

46

1DO-42-20

M42X2

1.5/8"X12

30

20

15.1

50

50

1DO-52-20

M52X2

1.5/8"X12

38

22

15.1

52

55
