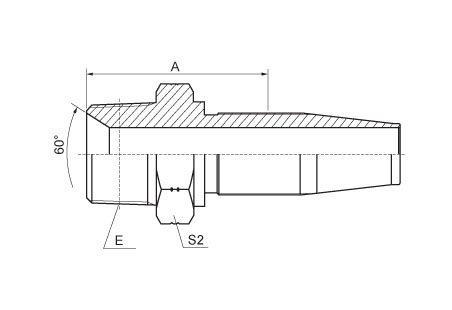

PART NO.

THREAD E

HOSE DASH

DIMENSIONS

A

S1

15618-02-04��R5��

Z1/8"X27

04

25.5

12

15618-04-04��R5��

Z1/4"X18

04

30

17

15618-04-06��R5��

Z1/4"X18

06

31

17

15618-06-05��R5��

Z3/8"X18

05

32.9

19

15618-06-06��R5��

Z3/8"X18

06

32

19

15618-08-08��R5��

Z1/2"X14

08

40.5

22

15618-12-10��R5��

Z3/4"X14

10

42.5

30

15618-12-12��R5��

Z3/4"X14

12

43

30

15618-16-16��R5��

Z1"X11.5

16

46.5

36

15618-20-20��R5��

Z1.1/4"X11.5

20

51.5

46

15618-24-24��R5��

Z1.1/2"X11.5

24

52.5

50

15618-32-32��R5��

Z2"X11.5

32

55

65
